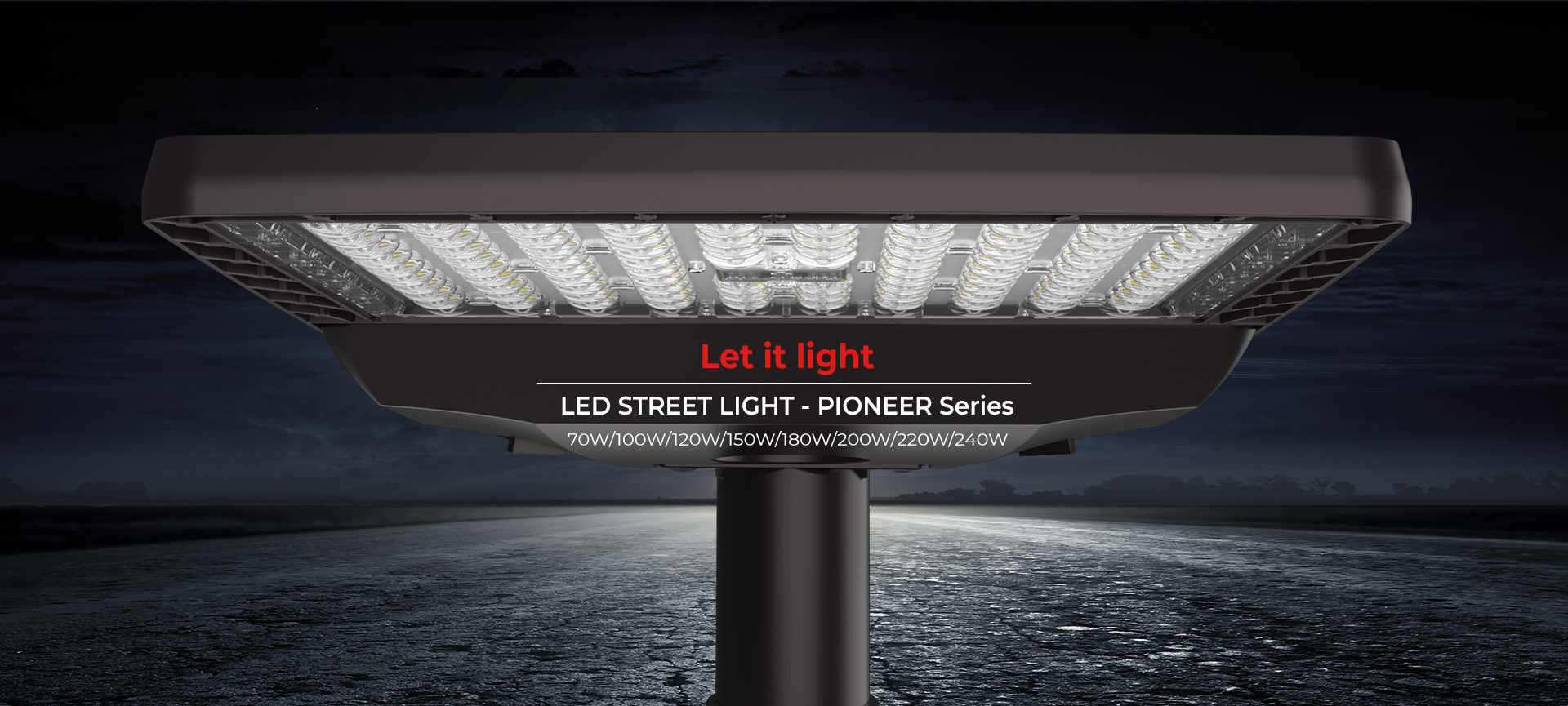

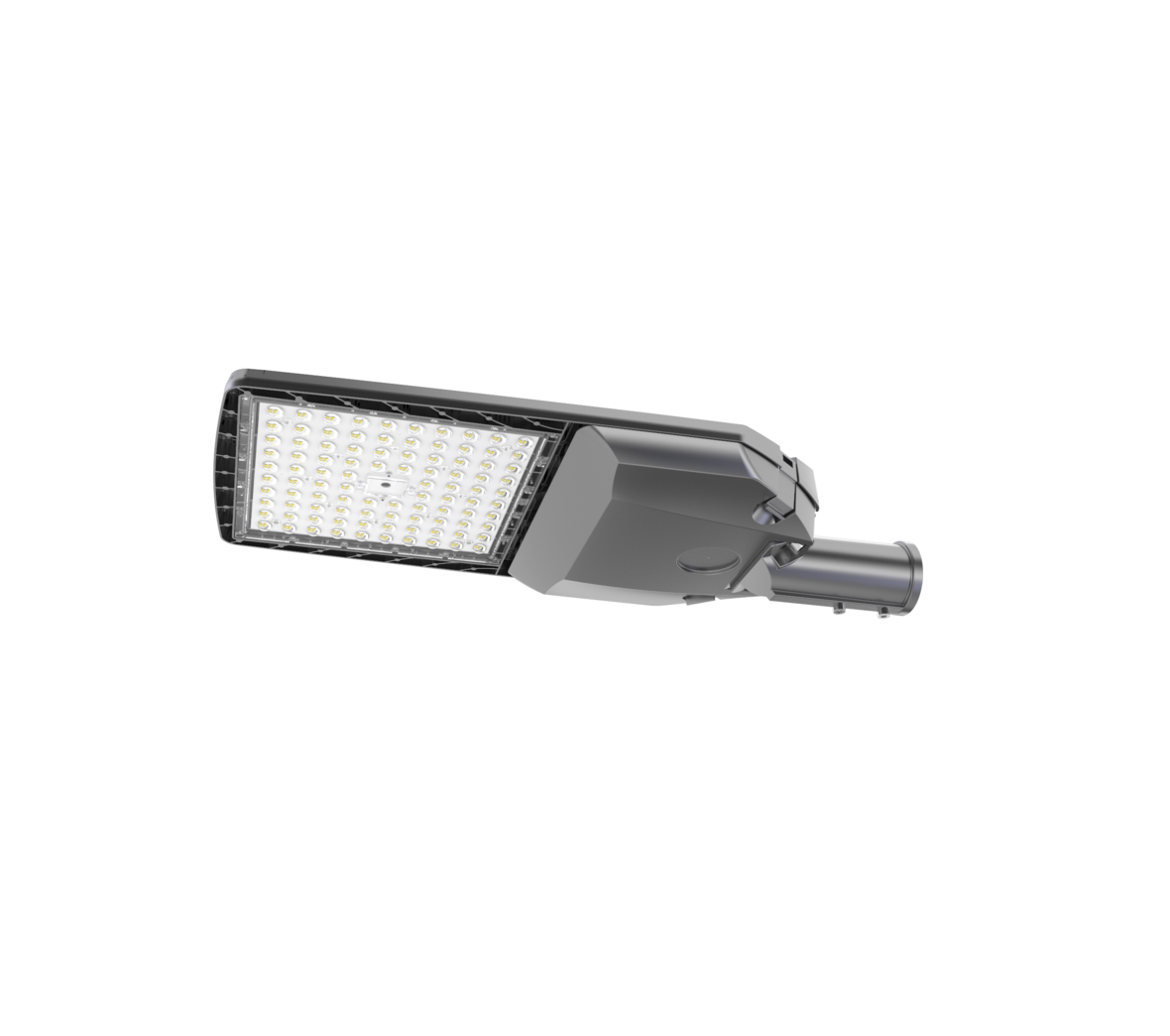

PIONEER SERIES STREET LIGHT
* Smooth design with the best heat dissipation performance
* Smart backlight control and rotatable lens
* Contractor-friendly installation kit
* NEMA standard control
APPLICATION
Street, Bridge, Roadway, Parking lot, Park, Plaza etc.
OVERVIEW
- Wattage
70, 100, 120, 150, 180, 200, 240W
- Lumen
10500/15000/18000/22500/27000/30000/36000LM
- Voltage
200-240Vac
- Optic
Type III, IV, V
- CCT
3000K, 4000K, 5000K, 5700K
- Mounting
Side-entry / Pole Mount
- Color
Bronze, Custom color
- Control
Photocell, PIR/Microwave Motion Sensor
- IP GRADE
IP65
- Surge
10KV/ Optional 10~40KV SPD
FEATURES
Construction

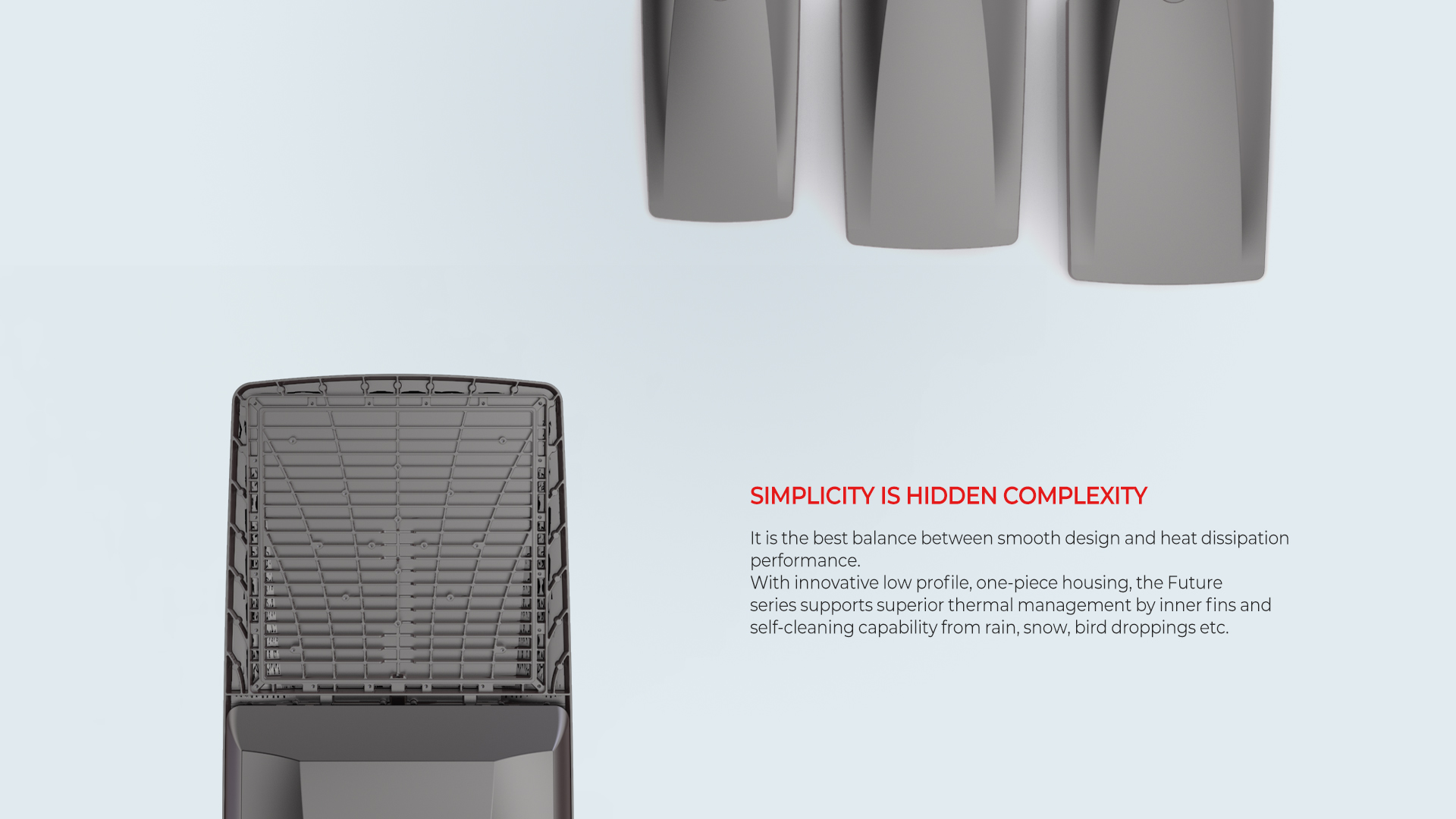

With innovative low profile, one-piece housing, the Pioneer series supports superior thermal management by inner fins and self-cleaning capability from rain, snow, bird droppings etc.
Distribution
Standard type III, IV, V
Rotatable lens make it easy to change the direction of distribution.

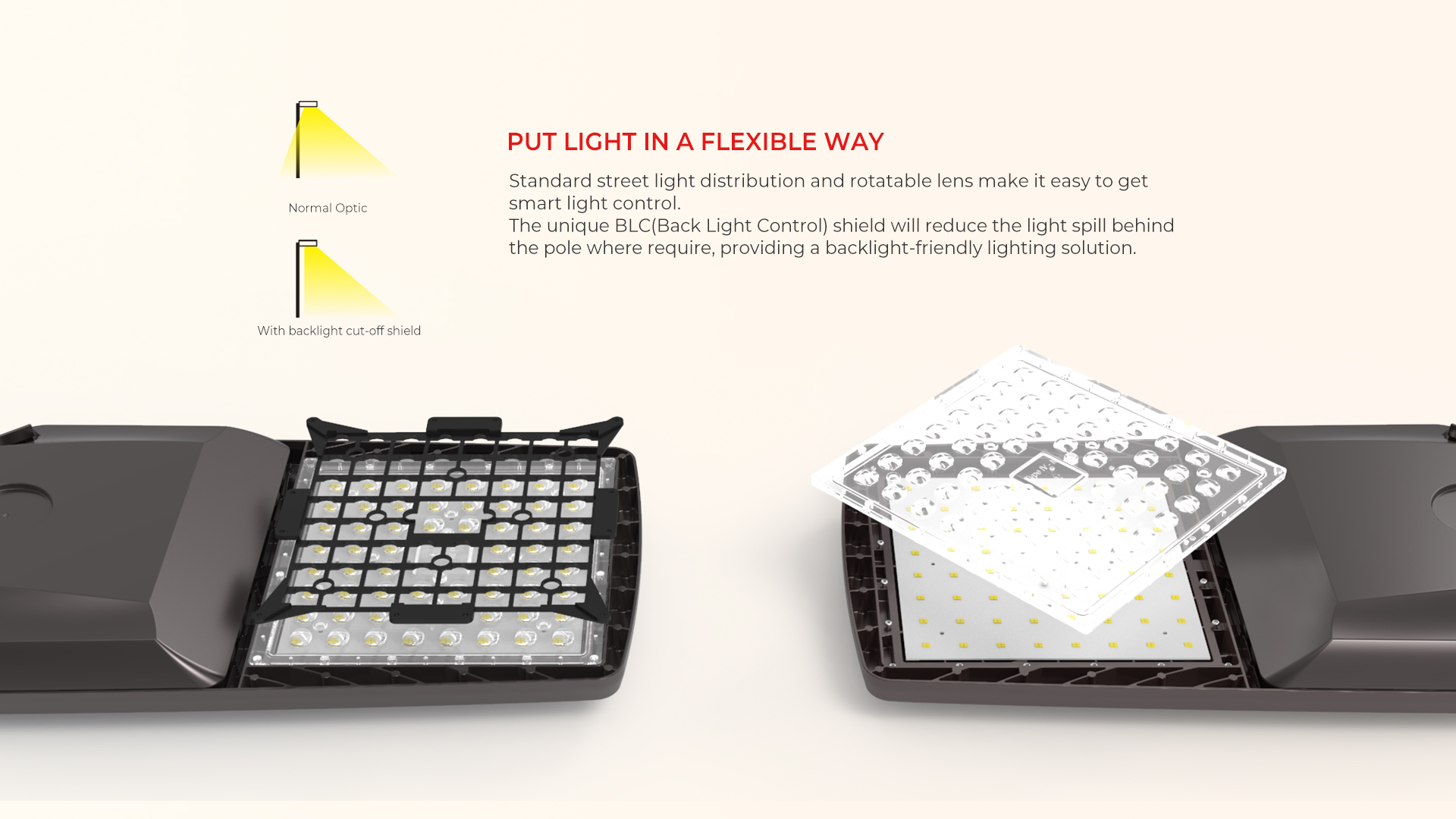

The unique BLC(Back Light Control) shield will reduce the light spill behind the pole where require, providing a backlight-friendly lighting solution.Installation

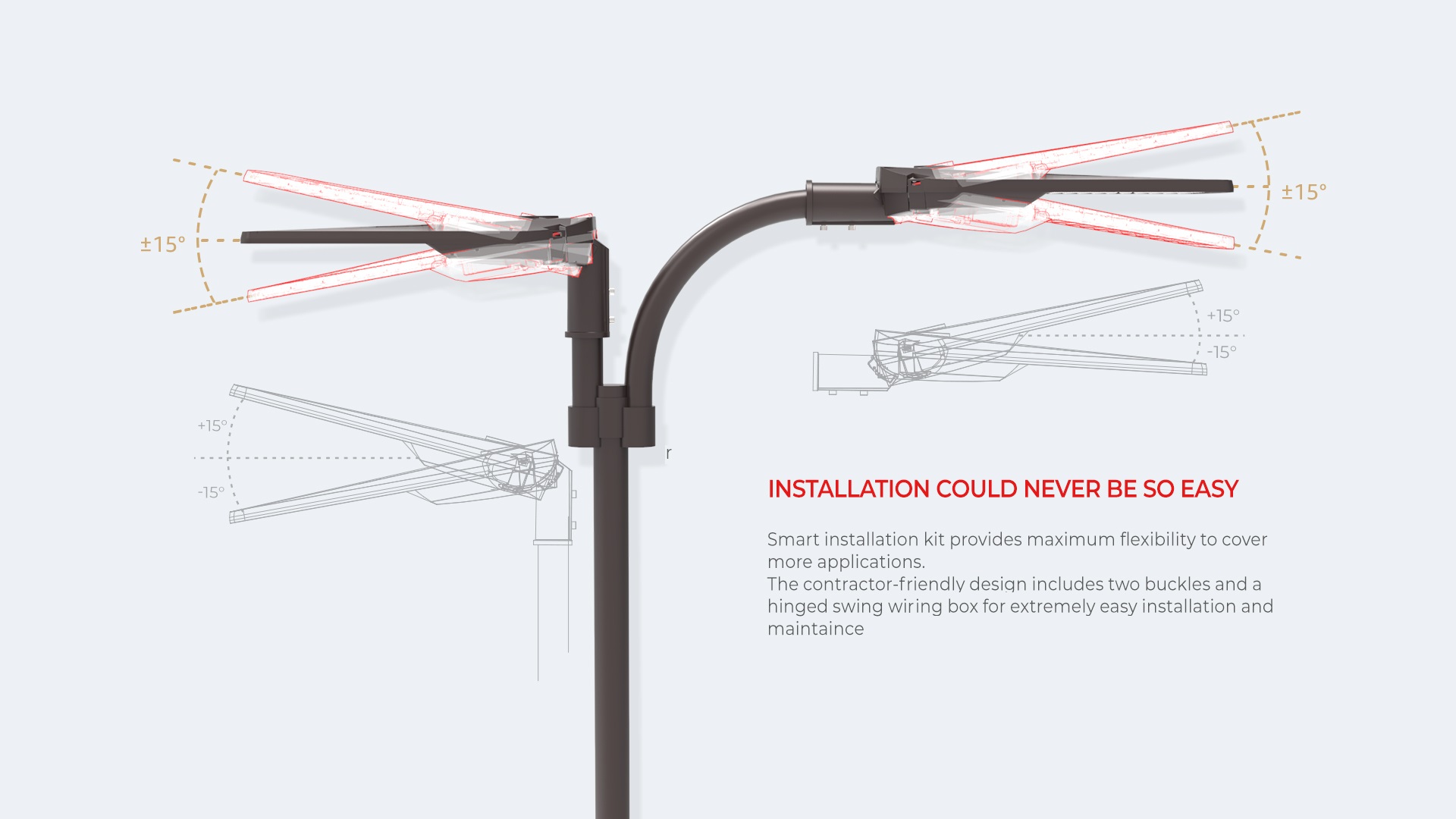

Smart installation kit provide maximum flexibility to cover more applications.
The contractor-friendly design includes two buckles and a hinged swing wiring box for extremely easy installation and maintaince.Control

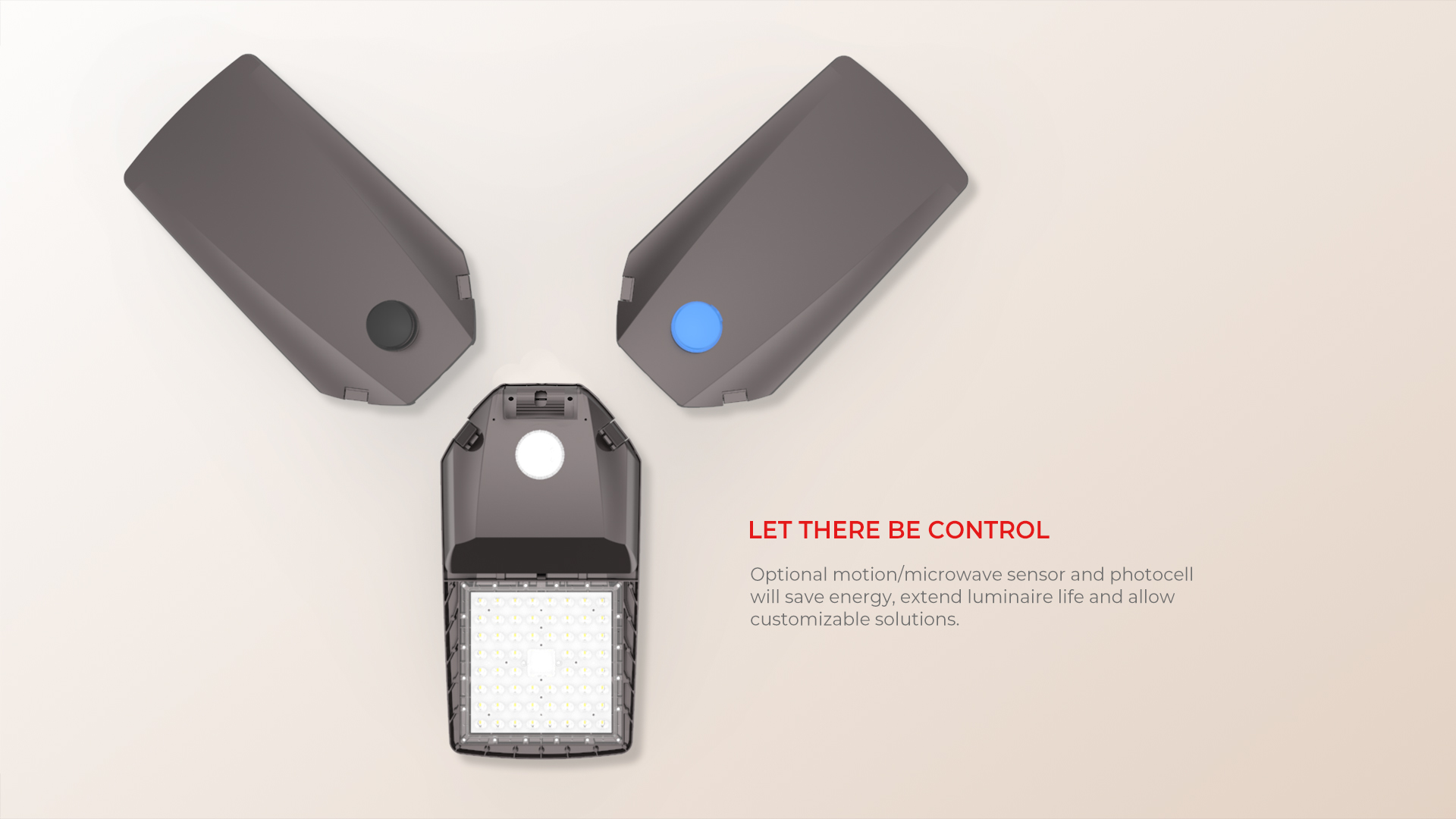

Optional motion/microwave sensor and photocell will save energy, extend luminaire life and allow customizable solutions.
