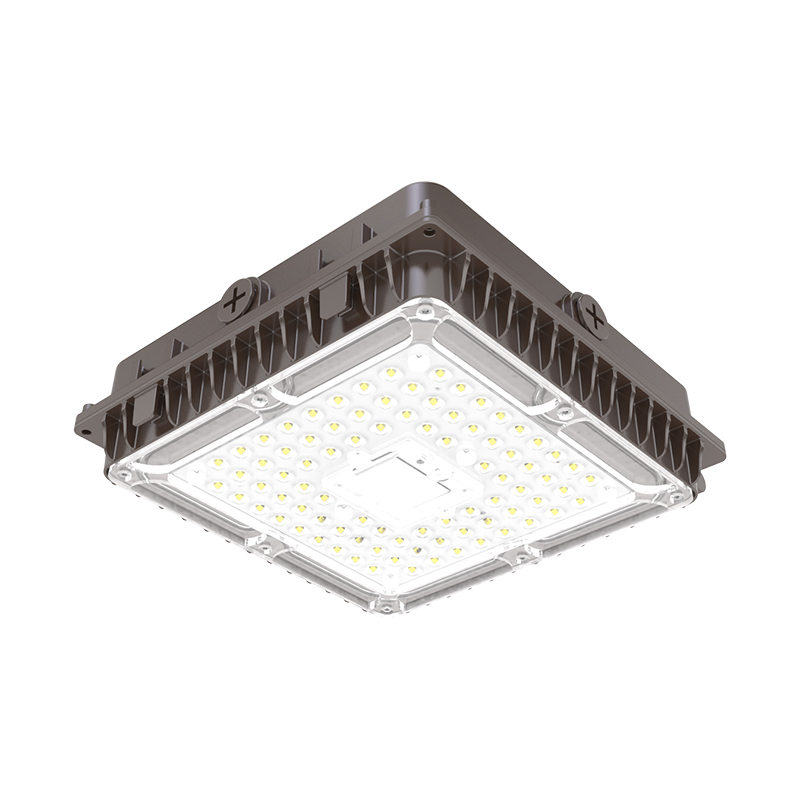

VEGA SERIES CANOPY LIGHT

* Hinged two-piece enclosure designed for quick installation

* Attractive, low-profile architectural design

* Standard Universal Voltage ( 120-277Vac ) or (120-347Vac), Input 50/60 Hz

* Type V optics targeted for garagel


prodd


APPLICATION

Parking Garages, entryways, Security, Banks or Fast Food Restaurants, Exterior etc

INQUIRY
Product description
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]
参数
OVERVIEW
  • Wattage

    45W/ 65W

  • Lumens

    6750lm/ 9750lm

  • Voltage

    100-277Vac, 120-347Vac

  • Optic

    Type V

  • CCT

    3000K, 4000K, 5000K, 5700K

  • Mounting

    Surface/ Pendant

  • Color

    Bronze, White

  • Control

    Motion Sensor

  • IP GRADE

    IP65

FEATURES

  • Construction

    With Hinged two-piece design for quick installation and maintaining, more than 50% labor cost saved. Super compact design, net weight less than 1.8kg (5lb).

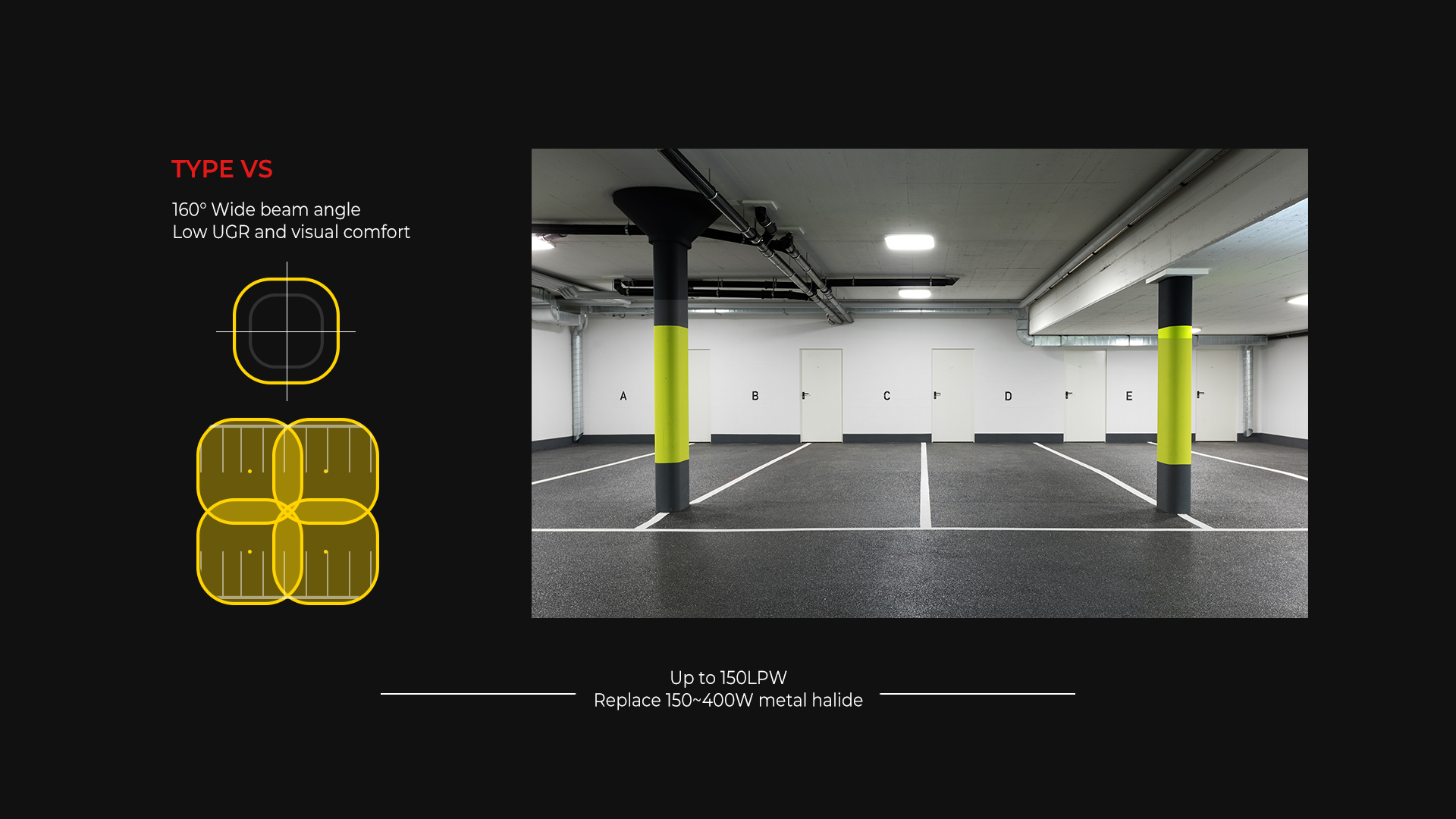

  • Distribution

    Type V distribution increases customer visibility and safety for areas where sufficient, evenly distributed light is necessary, which bring low UGR and visual comfort, it meet different application including effective illumination of driver lanes, entrances, elevator banks and signage..

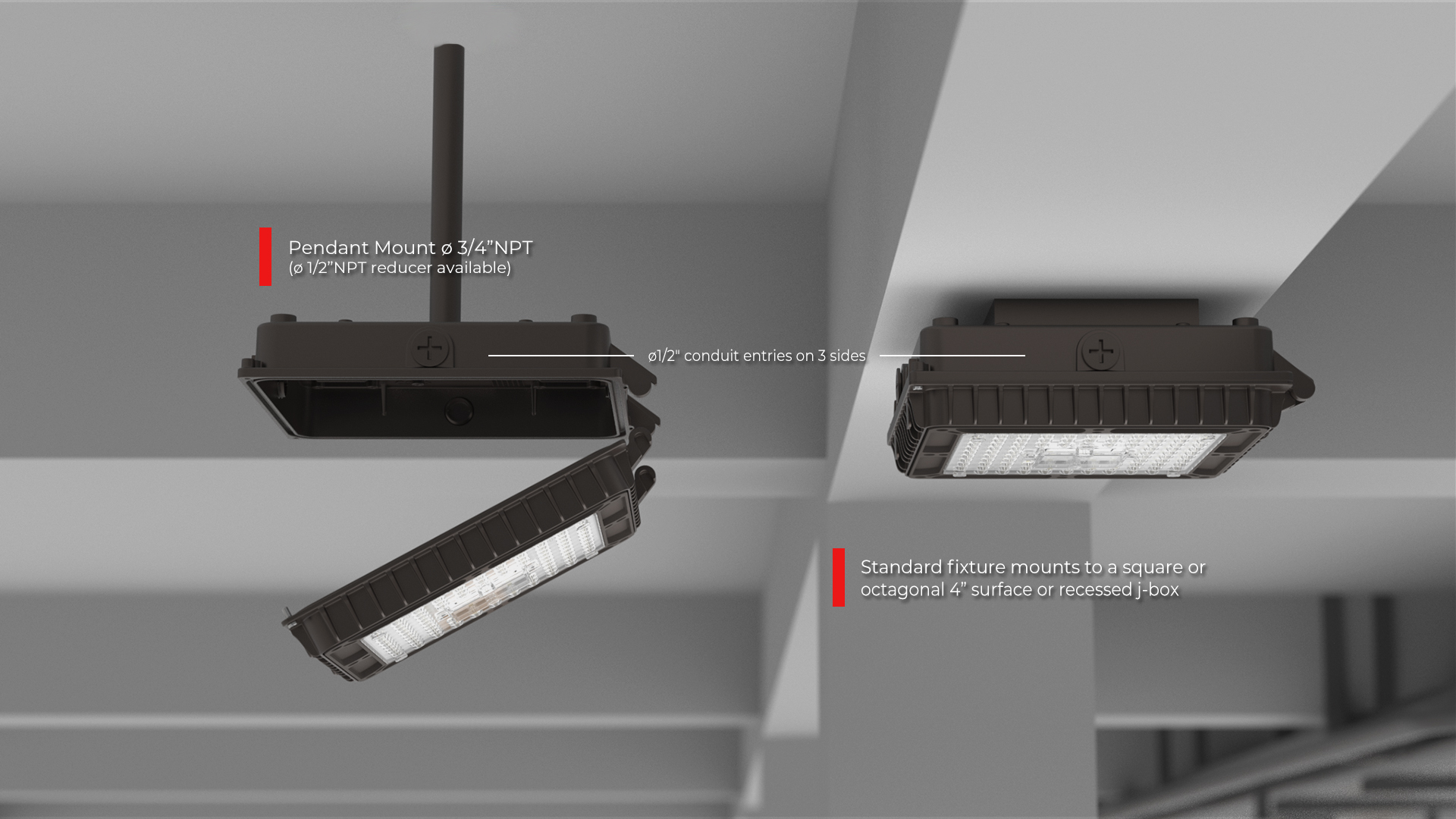

  • Installation

    The VEGA Series parking garage light is suitable for Surface Mounting and Pendant Mounting.
    1) Standard fixture mounts to a square or octagonal 4" surface or recessed j-box .
    2) 3/4" NPT conduit entry on top for pendant mounting (pendant provided by others) 1/2 " NPT reducer available. 1/2" conduit entries on three sides.

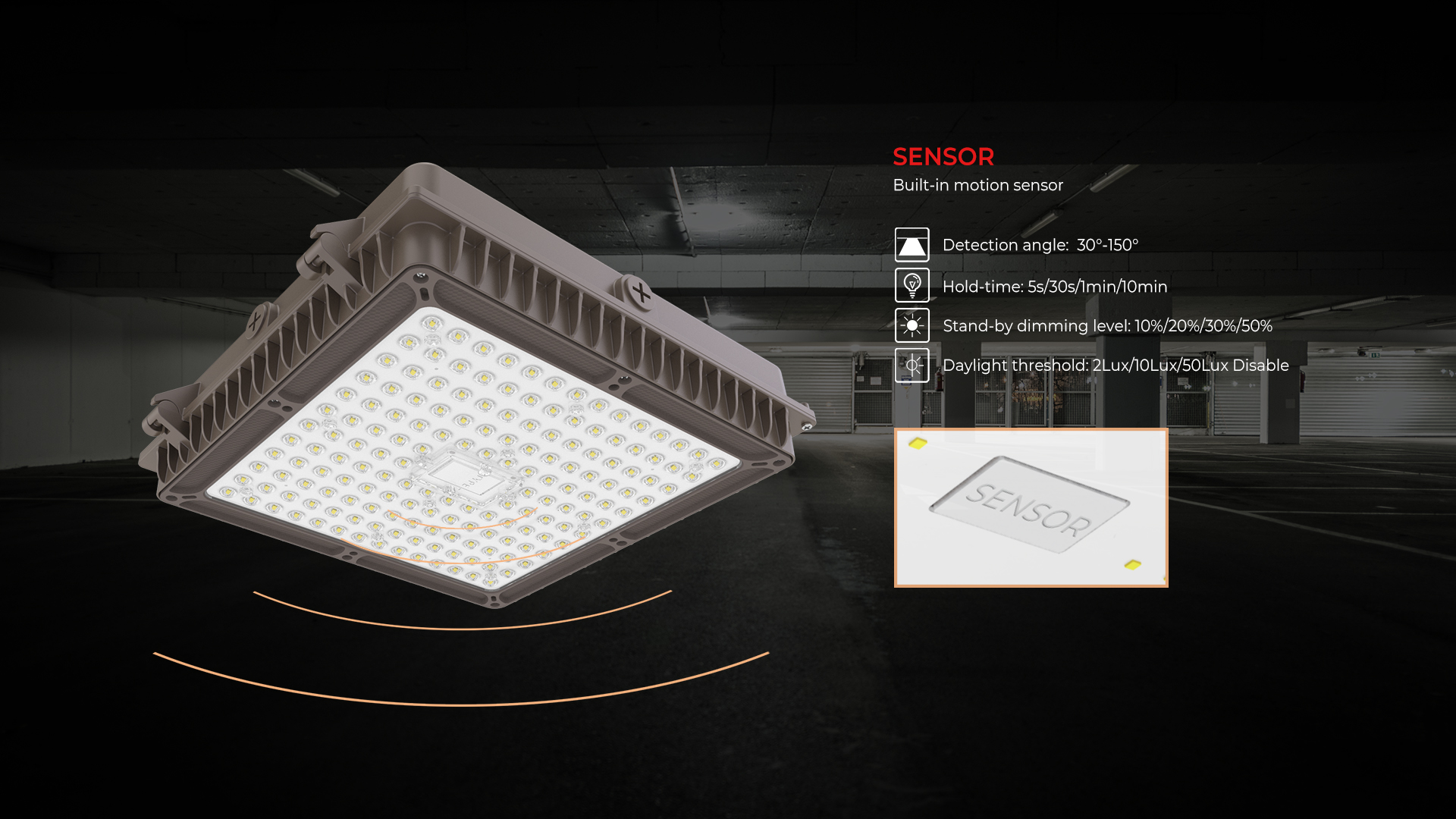

  • Energy saving & Environmental

    Built-in moiton sensor available.
    The max dection area is 14m, and with 4 stand-by dimming level 10%/20%/30%/50% for the maximum flexibility and energy-saving.
